Company Profile

Indian Electricals We started our journey about five decades ago with the manufacturing of customer friendly products like Starters, Pumps, MCBs etc.
During these five decades many more things have evolved and most among them has been the emergence of SKN-Bentex brand as the leader in the market. With expertise developed over the last five decades, its customer-centric approach and world class resources, SKN-Bentex have millions of satisfied customers using its extensive range of products.

Our Product Range

Oil Immersed Starters

MOTOR STARTERS

Oil Immersed Starters

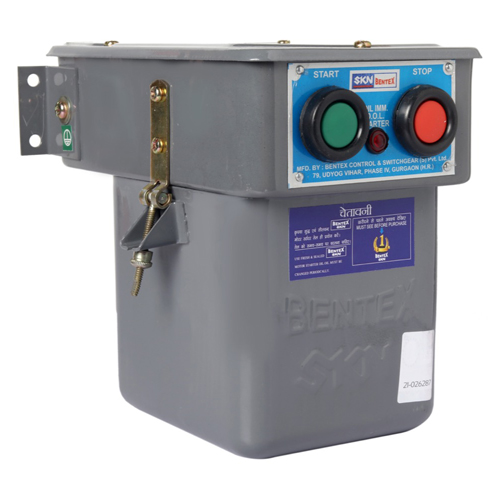

  • BOI
    DIRECT-ON-LINE PUSH BUTTON OIL IMMERSED MOTOR STARTER (5 TO 20 HP)
    (5 TO 20 HP)
    Starter is ruggedly constructed, totally enclosed and fixed in cast iron/ sheet metal frame for wall mounting. The starter enclosure is dust & vermin proof.

TECHNICAL SPECIFICATION

400 VOLTS

TYPE

H.P.

3 PHASE

R. RANGE

BOI

5.0

6.0 – 10A

BOI

7.5

9.0 – 14A

BOI

10.0

13.0- 21A

BOI

15.0

20.0 – 32A

BOI

20.0

25.0 – 35A

Residual Current Circuit breaker - RCCB

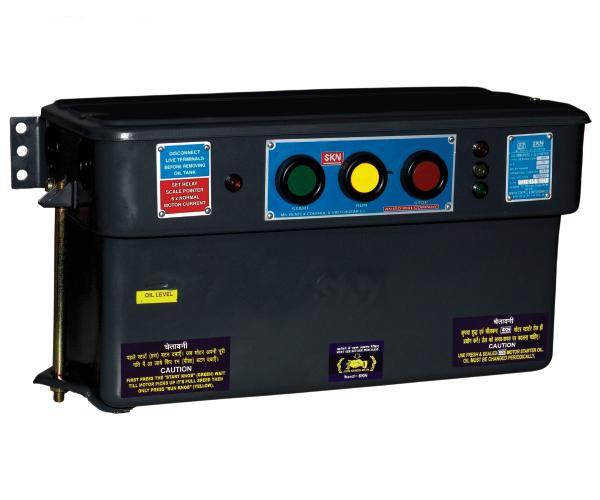

  • BSA
    SKN SEMI AUTOMATIC STAR DELTA OIL IMMERSED MOTOR STARTER
    (7.5 TO 60HP)
    Starter is ruggedly constructed, totally enclosed and fixed in cast iron/sheet metal box. The enclosure is dust and Vermin Proof. Press the start Knob (Green) to run the motor in 'STAR' positon. When the motor has attained normal speed (i.e. 80 to 90%), press the run knob (Yellow) to bring the motor to 'DELTA' position. Press Stop knob (Red) to stop the motor. Thermal, bimetallic overload relay, triple pole accurately calibrated to provide protection against overloads.
TYPE H.P./KW RELAY RANGE
BSA 7.5/55 6.0-10A
BSA 10.0/7.5 6.0-10A
BSA 12.5/9.3 9.0-14A
BSA 15.0/11 9.0-14A
BSA 20.0/15 13.0-21A
BSA 25.0/18.6 20.0-32A
BSA 30.0/22.5 20.0-32A
BSA 35.0/26.1 20.0-32A
BSA 40.0/30 30.0-42A
BSA 50.0/37.5 38.0-48A
BSA 60.0/44.76 42.0-54A


Starter

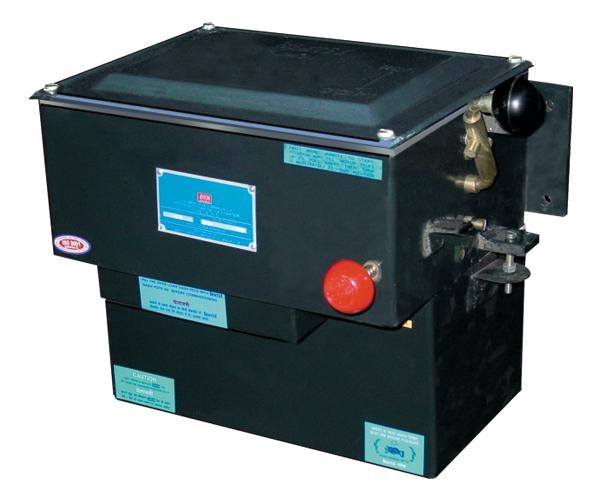

  • BSD
    Oil Immersed Starters are designed for use on voltages up to 440 V. The main body and oil tank is made of sheet metal. The enclosure both moisture and dust proof. These units are provided with heavy type copper contacts. These are made from hard drawn electrolytic copper section : arcing contact and main contact. The overload is of magnetic relay direct acting type with oil dashpot time lag. As a standard. Under voltage protection is provided by a closing type solenoid coil.

TECHNICAL SPECIFICATIONS

TYPE

H.P. Ralay Range (Amps)

BSD

10/7.5

12 – 18 A

BSD

15/11

20 – 26 A

BSD

20/15

25 – 35 A

BSD

25/18.6

32 – 42 A

BSD

30/22.5

40 – 53 A

BSD

3526.1

45 – 55 A

BSD

40/30

55 – 65 A

BSD

45/35

61 – 71 A

BSD

50/37.5

66 – 76 A

BSD

60/44.76

78 – 90 A
FAB

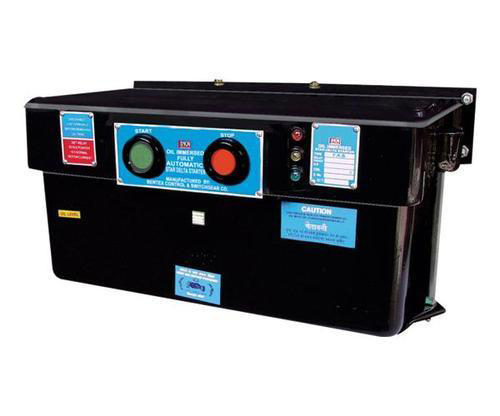

  • FAB
    SKN Starter is ruggedly constructed, totally enclosed and fixed in sheet metal frame for wall mounting. An easily removable cover made of steel sheet completely encloses the overload relay and connection terminals to ensure protection form dust and weather. Oil tank made of deep drawn sheet is fixed with the lower part of the sheet metal frame and can be easily removed by loosening nuts on the left and right hand sides. The enclosure is dust and Vermin Proof.

    Press the star knob to run the motor in 'STAR' position. It will automatically change over to 'DELTA' by means of a time lag relay (timer) which is mounted (inside cover) at the right hand side top of the starter.

    The relay (timer) is adjustable within the range 3-12seconds or 5-20 seconds marked as MIN-MAX

TECHNICAL SPECIFICATION

TYPE

H.P./KW

R.RANGE

FAB

7.5/5.5

6.0 – 10A

FAB

10.0/7.5

6.0 – 10A

FAB

12.5/9.3

9.0 - 14A

FAB

15.0/11

9.0 – 14A

FAB

20.0/15

13.0 – 21A

FAB

25.0/18.6

20.0 – 32A

FAB

30.0/22.5

20.0 – 32A

FAB

35.0/26.1

20.0 – 32A

FAB

40.0/30

30.0 – 42A

FAB

50.0/37.5

38.0 – 48A

FAB

60.0/44.76

42.0 – 54A


SSD
  • SSD
    Oil Immersed Manual Star Delta Starters
DESCRIPTION H.P.
Heavy Duty Oil Immersed 0-20 HP
Manually Operated Star-Delta Motor Starter 21-30 HP
Type : SSD 31-40 HP
Type ; SSD (E) 41-50 HP
BOI SSP

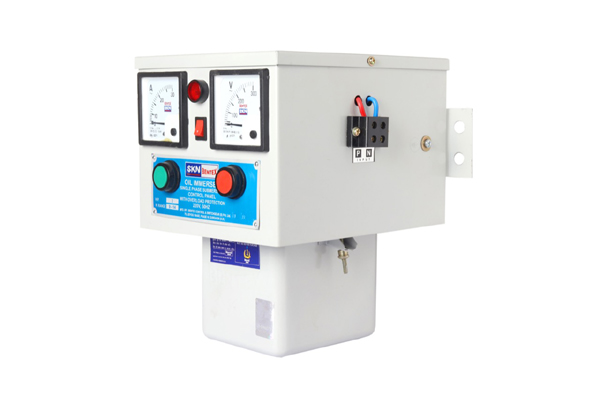

  • BOI SSP
    Oil Immersed Single Phase Control Panels

    BOI (SSP) 220 V AC Single Phase, 50 Hz (1 HP to 7.5 HP)
DESCRIPTION H.P. STD.PKG.
BOI (SSP) Unit with Condensers 1, 2, 3 HP 4
BOI (SSP) Unit with Condensers+O/L Relay 5 HP 2
7.5 HP 2
Air Break Motor Starters/Panels

Air Break Motor Starters/Panels

  • BSDL
    AIR BREAK DIRECT ON LINE
    MOTOR STARTERS
    (0.25 TO 7.5 H.P.)
    SKN AIR BREAK DIRECT-ONLINE starters. Type BSDL are manufactured from 0.25 H.P. to 7.5 H.P. These starters are designed to give protection to electric Motors against overloading single phasing and locked rotor conditions of squirrel cage induction motors and power circuits, while operating over widely fluctuating voltage conditions.

MOTOR RATING H.P. FOR - BSDL

220 V

440 V

RELAY

1-ph

3-ph

RANGE AMPS

0.25

1.0

1.5-2.5

0.5

1.5

2.5-4.0

-

2.0

2.5-4.0

0.75

2.5

4.0-6.5

-

3.0

4.0-6.5

1.0

-

6.0-10

1.5

5.0

6.0-10

1.5

6.0

6.0-10

2.0

7.5

9.0-14
BDL
  • BDL
    BENTEX-SKN Â DIRECT-ON-LINE AIR BREAK Motor Starter meets the need for high reliability in both Industrial and Agricultural applications. They are designed for DOL switching of AC Motors up to 10 HP (7.5 kw) at 415V three phase and upto 3 HP (2.23 kw) 220V single phase and offer comprehensive motor protection against overload, single phasing and unbalanced voltage.

    Salient Features
    Every starter is tested to a high degree of accuracy and is calibrated to the strictest tolerances.
    Precision ground laminations for silent operation with each lamination individually rust protected.
    Vacuum impregnated coil.
    Silver Cadmium Oxide contacts.
    Accelerated tripping under single phase conditions.
TECHNICAL SPECIFICATION THREE PHASE:
HP/KW RELAY RANGE(Amps)
0.5/0.32 1.0 - 1.6
1.0/0.75 1.5 - 2.5
1.5/1.12 2.5 - 4.0
2.0/1.5 2.5 - 4.0
3.0/2.2 4.0 - 6.5
5.0/3.7 6.0 - 10
7.5/5.5 9.0 - 14
10.0/7.5 10 - 16
SMC Panel

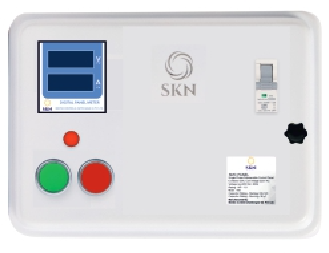

  • SMC Panel
    SMC Single Phase Submersible Control & Protection Unit

ProductID HP KW Capacitor Start(mfg) Capacitor Run(mfg) MCBRANGE
SMCSP1022M 1 HP 0.75 100-120 36 16AMP.
SMCSP1522M 1.5 HP 1.125 120-150 50 20AMP.
SMCSP2022M 2 HP 1.5 150-200 72 25AMP.
SMCSP3022M 3 HP 2.25 200-250 105 32AMP.
BUS BAR
  • BUS BAR
    Chambers 3 Phase 4 bar Heavy Duty Copper Bar
DESCRIPTION
RANGE 63A-200A
EXECUTION FP
RATED VOLTAGE 415V AC
RATED INSULATION VOLTAGE 660A
UTILIZATION CATAGORY AC-22A
CONFORMS TO

IS -13947(PT-3)

1993  IEC  :947-3

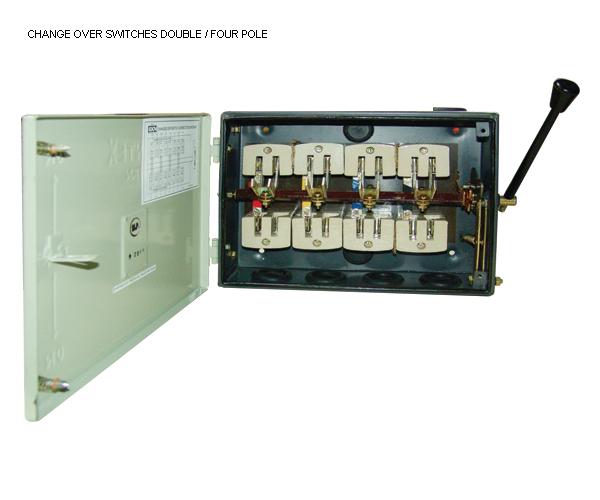

Change Over
  • Change Over

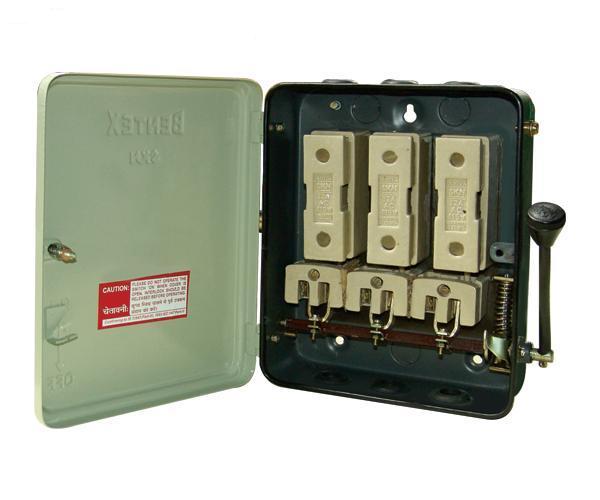

MAIN SWITCH
  • MAIN SWITCH
    Triple Pole and Four Pole changover Switches made by Bentex are specially designed for modern industrial use. Application involves control of power from two sources. These are available in current rating of 16A to 2000A at rated voltage of 415 volts.

    SALIENT FEATURES :
    . Hard silver plated fix and moving contacts for high conductivity and long life.
    . Fully shrouded contacts for high load breaking capacity.
    . Weather-proof enclosure with ample wiring space.
