Indian Electricals | Near Gurunanak Chowk, Beside Ganj Maidan, Ganj Dabri, Station Road, Raipur

Company Profile

The company manufactures all types of domestic, agricultural, submersible, open well and pressure pumps. We deliver total customer satisfaction by anticipating customer needs and presenting quality pumps at the right time and at the right price.

Our Product Range

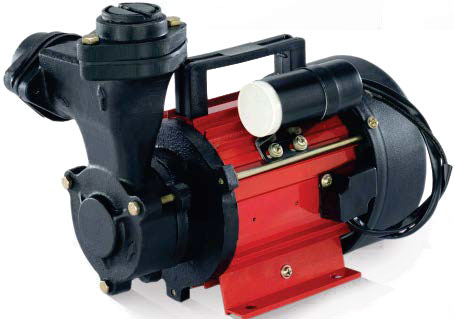

Self Priming Pumps

Salient Features:

Portable and light weight.
Easy to install and need simple maintenance.
Aesthetic look with powder coated finish.

Motor:

Suitable for 200-240V, 50HZ power supply.
In built thermal overload protector (T.O.P).
Permanent split capacitor design for better reliability.
Double shielded ball bearings.

Applications:

Domestic water supply.
Lawn and water gardening.
Domestic pressure boosting.
Water transfer from underground sump to overhead tanks in residential houses and apartments.

Pump:

Rigid cast iron pump casing.
Forged brass impeller.
Corrosion resistant stainless steel shaft.
High quality carbon vs ceramic mechanical seal.
Inbuilt Non return valve (NRV).

Material of Construction
Part Name.	Material.
Rear Coner.	Cast iron.
Bracket.	Cast iron.
Shaft.	SS.
Pump Casing.	Cast iron.
Mechanical Seal.	Carbon and Ceramic.

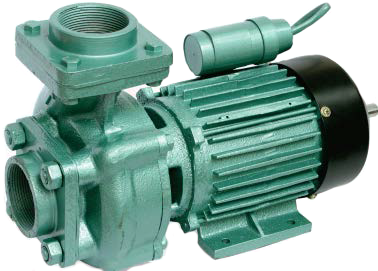

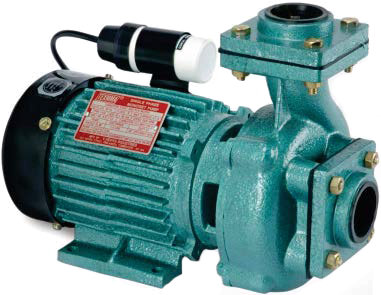

Centrifugal Monoblock Pumps

Our Centrifugal Monoblock Pumpsets are powered by a totally enclosed fan cooled AC Induction two pole motor. Motor stator is made of low watt silicon steel laminations assembled under pressure and the rigidly locked in the frame. The windings are of high - grade enameled copper wire offer excellent resistance and are varnish impregnated. Construction of motor frame and usage of quality material results in High performance and Low temperature rise thereby increasing the life of the motor.

Salient Features:

High operating efficiency resulting in lower power consumption.
Dynamically balanced rotor for longer trouble free life of the pump.
Double shielded ball bearing So, external lubrication is not required.
Good suction lift characteristics.

Motor:

Suitable for 200-240V, 50HZ power supply.
Permanent split capacitor design for better reliability.
Double shielded ball bearings.

Applications:

Domestic.
Agriculture.
Irrigation.
Farms.
Industry.

Pump:

Rigid cast iron pump casing.
Graded Cast Iron Impeller.
Corrosion resistant stainless steel shaft.
High quality carbon vs ceramic mechanical seal.

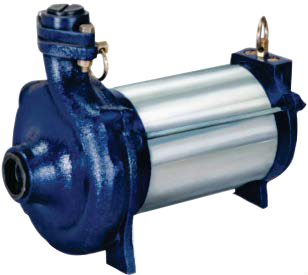

Horizontal Open Well Pumps

Our Horizontal Open-well Submersible Pumpsets are ideally suitable for Open-well/Tanks where a wide fluctuation of water level occurs. The pumpset works underwater and rests at the bottom of the well or Tank. Hence the suction and priming problem will not arise. The optimal design of impellers and diffusers enables the best possible hydraulic efficiency. Motor sealing is made by Polymers,'O' rings, oil seals and sand guard to avoid ingress of well water/sand into the motor. Pressure equalizing rubber diaphragm is provided to guard the motor from pressure and volume variation of water inside the motor. Our pump comes with pre-filled liquid. Hence, a filling is not required.

Salient Features:

Energy efficient motor.
Low operating cost.
Fitted with Carbon Bushes.
Water lubricated motor with easily rewindable stator.
Rigid cast iron motor frame, impeller and voult casing.

Applications:

Pumping water from underground sump to overhead tanks in residential Houses and Apartments.
Water transfer from underground sumps in small Commercial establishments, Hotels and Lodges.
Domestic.
Rural water supply.
Irrigation.
Multi storey buildings.
Gardens.

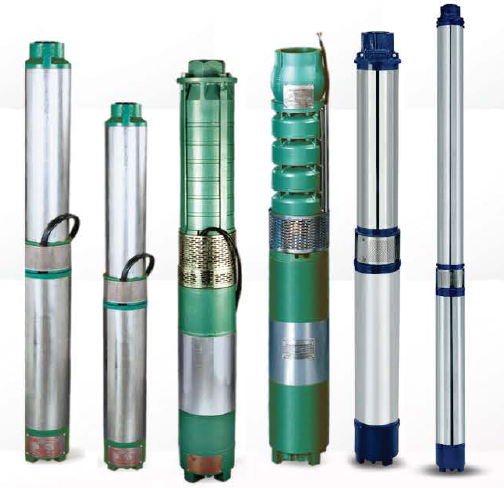

Stainless Steel Submersible Pumps

Our 4" and 6" Stainless Steel Submersible Pumpsets are easy to install, efficient and require minimum maintenance. A wide range of pumps is available to meet diverse operating requirements. Motors are water lubricated and feature robust thrust bearings. Good quality materials are used to obtain long life and facilitate easy service.

Salient Features:

Energy efficient motor.
Low operating cost (Low Power Consumption).
Water lubricated motor with easily rewindable stator.
Energy Efficient Radial and mixed flow models.
Rubber diaphragm provided at the bottom of the motor to compensate thermal expansion of water.
Wide voltage operation to suit all seasons.
Low, Medium, High Voltage operation Motors to suit particular field condition.
Pumpsets with special materials are available on request.

Applications:

Irrigation systems for Agriculture including Drip and Sprinkler systems.
Pressure boosting applications.
Domestic water supply to large residences and multi-storied apartments.
Water supply to commercial establishments like Hotels, Lodges, and Hospitals.
Dewatering of mines.
Industrial water supply.
